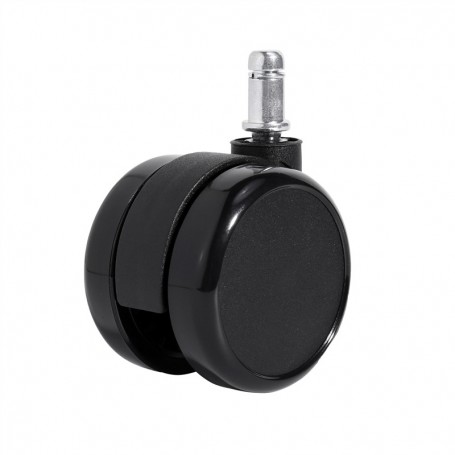

self braking chair casters for office chair
Self braking chair casters Features:
A. Easy-rolling 65mm wheel diameter= 2.56 inch casters
B. Threaded screw stem and friction grip neck stem option
C. Suitable for hardwood floors,suitable for laminate flooring
D. Locking and unlocking option
E. 11mm dia. push fit pin into your chair base (Standard fitment on most office chairs)
F. Standard main colors:Black ,Grey,White,Silver. Blue,Pink
What are self braking chair casters? self braking chair casters are a set of 5 casters or a set of 4 wheels in a swivel frame with kinds of floors or carpet. they are usually used for the support and movement of office chairs. The universal standard size is 7/16" x 7/8" (11mm x 22mm) sockets for stems. The different dimensions are self braking chair casters diameter, width, and height. Our self braking chair casters diameter were available from 25 mm to 100 mm with locking & unlocking function. The width self braking chair casters available from 28mm to 73mm.The height of self braking chair casters available from 32mm to 111.5mm.
This self braking chair casters has three colors with special function: light blue sit down brake casters, pink sit down brake casters and light grey sit down brake casters.
Choosing this 2-inch self braking chair casters a study chair for installation is your perfect choice. The material for these 2-inch self braking chair casters is in line with The international production standards for kids products, the smooth appearance is a kind of protection for kids.
specification
- Material:Plastic & Zinc Alloy Metal
- apacity: 40kg / 88lb per wheel
- Good quality with sgs bifma x5 1 en 1335 certificated
- No brake Casters & Wheels with brake option
- Application:All kinds of kids chair and kids study table
- Support FOB quotation,DDU price
- See the caster wheel sizes and details below

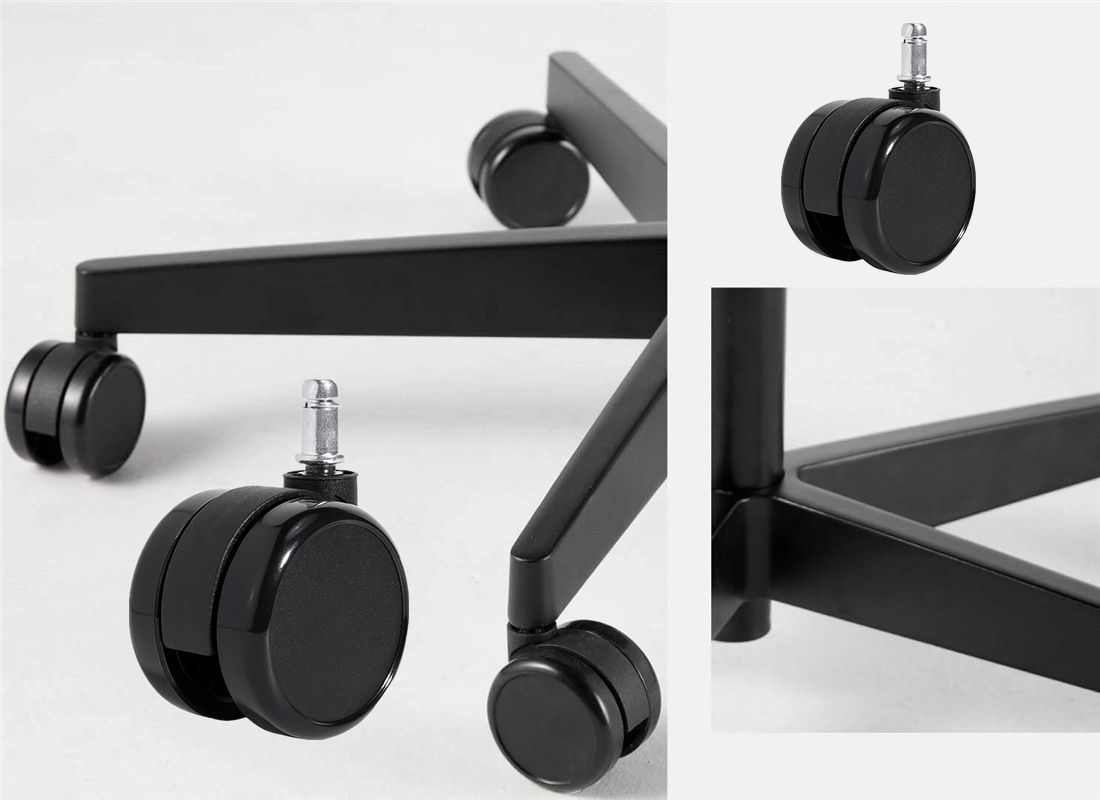

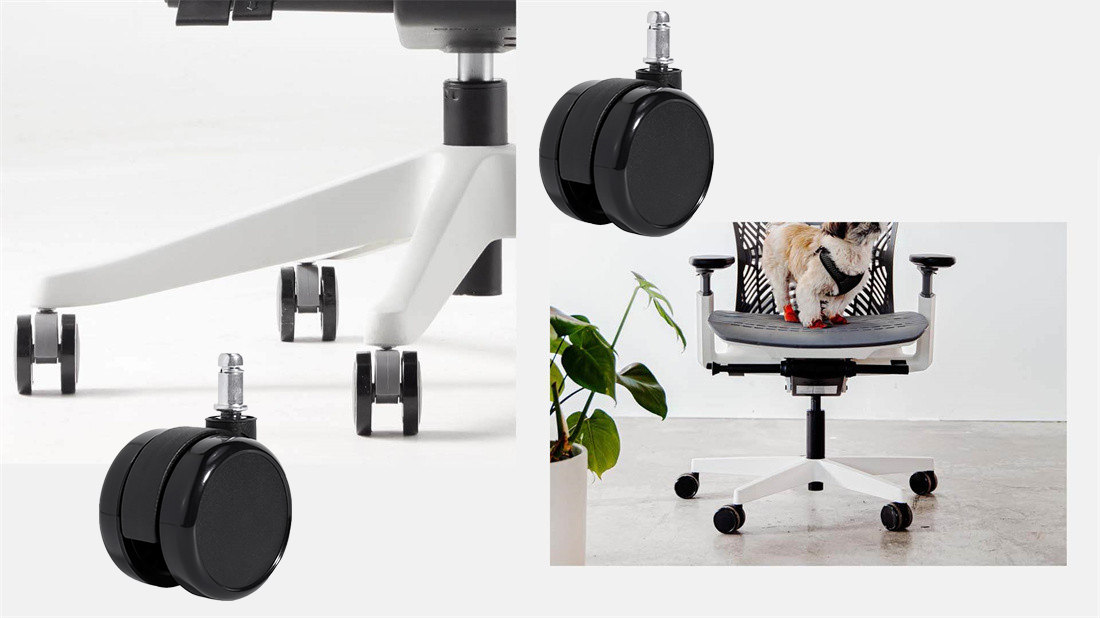

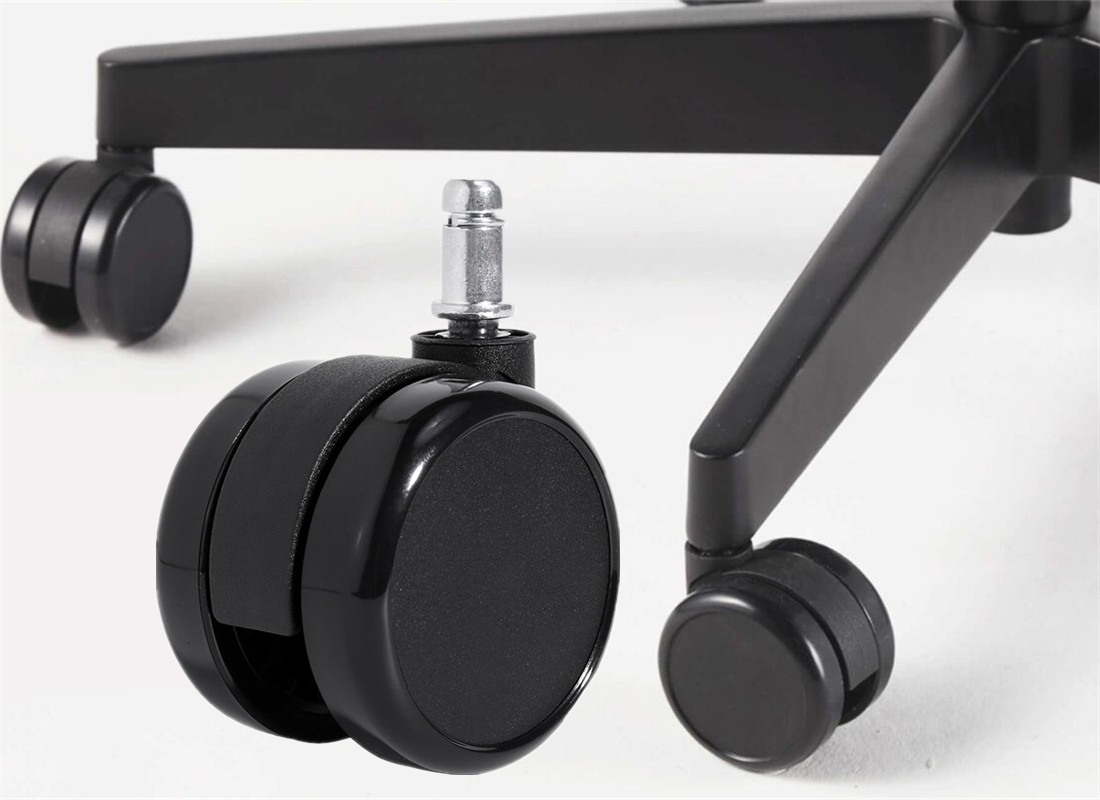

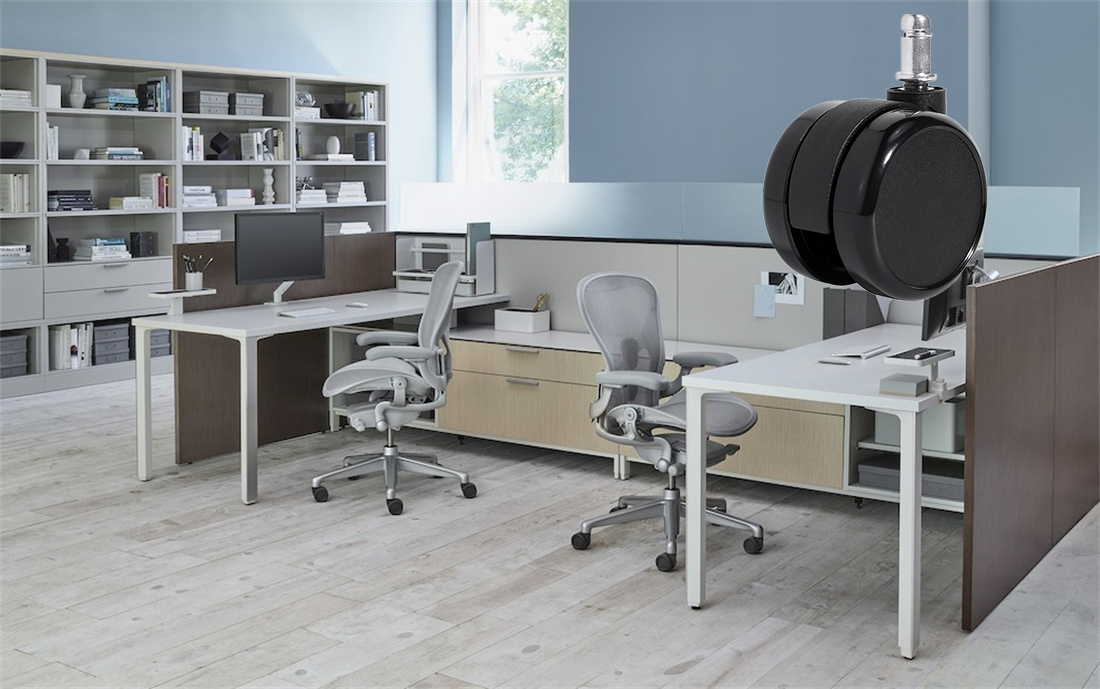

More pictures for self braking chair casters usage such as high-end office mesh chairs, computer chairs

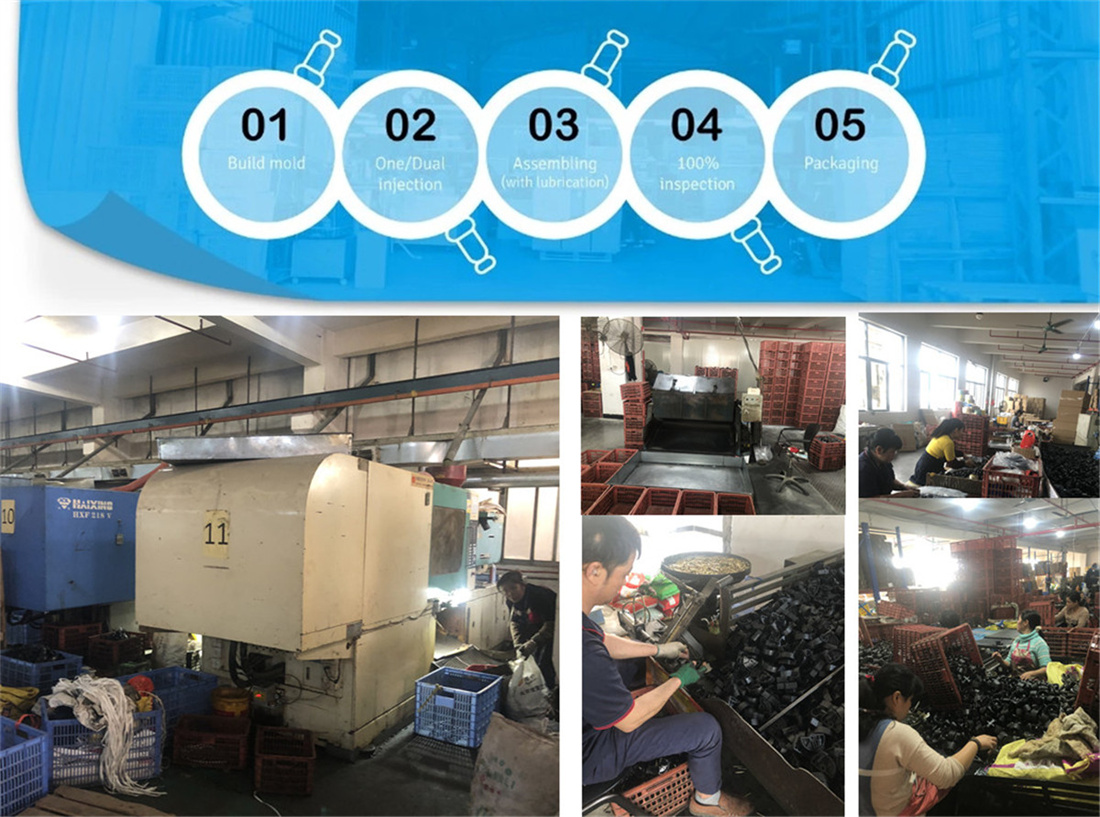

Manufacturing steps of self braking chair caster

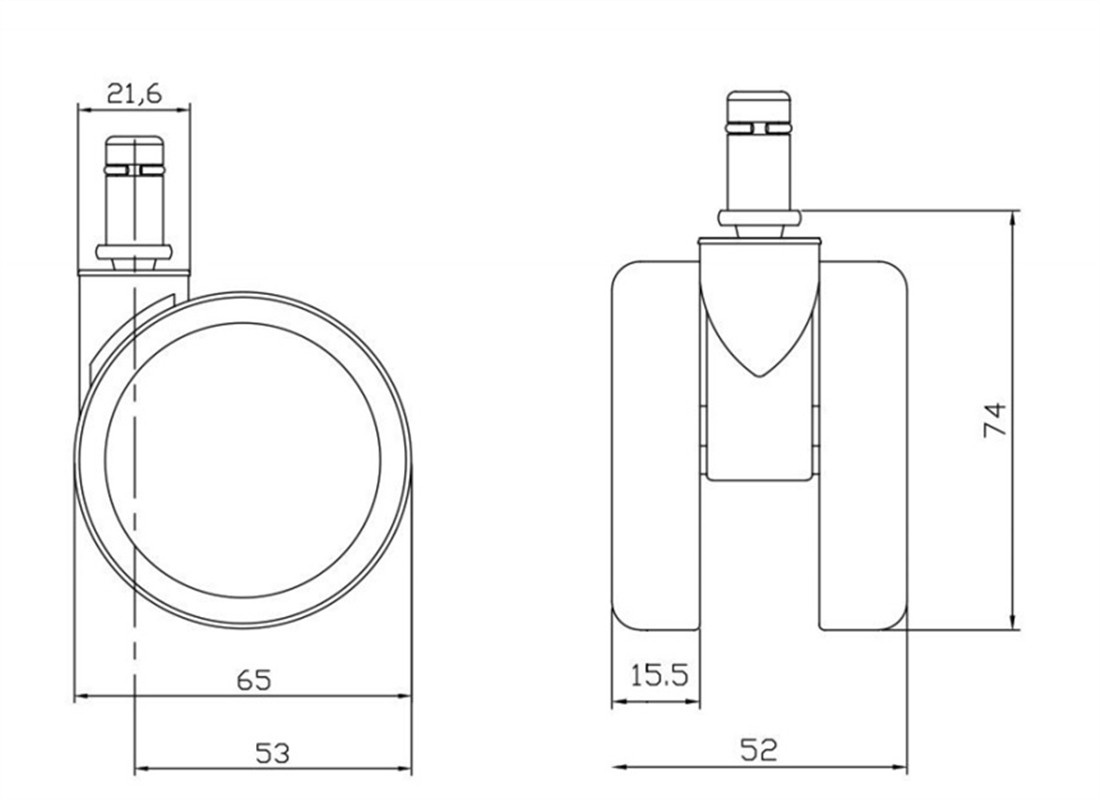

Self braking chair casters measurement guide below:
Self braking chair casters can be used for a wide variety of applications, It is important to have the right caster for the right application, the right size caster will be the difference of having a working application to not working at all. Taking key measurements will ensure that the caster will fit for the application. The following are 4 areas to measure.
1.Diameter for Self braking chair casters
Self braking chair casters including swivel casters and stable casters
swivel casters diameter measurements can be important in many applications as it provides important information as to how much clearance you will need for your caster to swivel. The goal for a swivel caster is to be able to swivel 360 degrees.
To determine your self braking chair casters diameter, lay the caster down on its side and measure from the center of the kingpin to the back edge of the wheel. A straight edge lying up against the face of the wheel will make it much easier for you to determine this measurement; the point where the tape measure meets the straight edge will determine your swivel casters diameter.
2.Overall Height for self braking chair casters
How to measure the overall height of the entire caster assembly? from the very bottom of the caster with brake to the very top of the Chair mechanism. This is simple enough; just lie the castor on its side and take the measurement. Again, write these numbers down and be sure they’re appropriately labeled.
3.Width for self braking chair casters
This is often called the tread width. It represents the width of the wheel face, measured without a load present.
How to measure the for self braking chair casters width?stand the for wheels with brakes for furniture upright and measure from the outside of one side to the outside of the other.
Any question please consult the factory for latest price and details.
Call us,Email us,Let's start the business now.
Are you looking for other hardware office chair parts?
Harware Office chair parts are including below, Go ahead to click it:
- Brand Name
- iTQfurniture
- Product Name
- Caster Wheel
- Model Number
- T-50204
- Type
- Brake,Locking
- HS Code
- 3926909090
- Material
- Black Nylon
- Minimum Order Quantity
- 5000pieces
- Color
- Black/Grey/blue/pink
- Net Weight
- 0.102kg
- Carton Dimension
- 0.46*0.29*0.35m
- Package
- 200pcs per carton
- Loading Qty 1*20GP
- 120000PCS
- Production Capacity
- 500000Pieces per month
- Application
- Home Office/Office Building/Home Bar
- Usage
- Swivel chairs,Office chairs,Gaming chairs,Training Table
- Customization
- Customized logo&Customized packaging&Customized color
- Quality Standard
- Passed BIFMA
- FOB Port
- Foshan/Shenzhen
- Lead Time
- 10days~25days
- Payment
- T/T,PayPal,L/C,D/P,WesternUnion
- Place of Origin
- China
- Wheel Bearing Type
- Plain Bearing
- Wheel Hardware
- Friction grip stem 11*21mm Stand brake
- Wheel Load capacity per unit
- 45kgs 99lbs
- Wheel Diameter
- 50mm(1.97inch)
- Wheel Height
- 63mm(2.48inch)
- Wheel Width
- 53.5mm(2.11inch)
About us-chair components suppliers
ITQfurniture is a trademark that is registered and owned by Changsha Tianqi Furniture Co., Ltd. We are OEM and ODM swivel chair components suppliers, manufacture standard and custom swivel office chair parts. Products available include office chair wheels, chair bases, chair gas lift (chair gas cylinders) and chair mechanism, chair armrest. Materials include Metal aluminum alloys, metal Iron, Plastic, and rubber PU.
1.Office chair wheels are available in 25 mm to 100 mm diameter sizes with locking & unlocking casters. Applications of office chair wheels include furniture, healthcare, display, beauty supply & technology. The below picture is an Office chair parts manufacturer workshop.
2.Chair bases divide 4 Leg bases and 5-star Bases. Available diameter for star chair bases ranges from 20" to 33".chair bases material are available in plastic, steel, and aluminum. Designed to accept a standard 50 mm diameter chair gas lift, chair Bases Accept friction ring stems used with most office chair wheels and glides. The below picture is the Office chair parts manufacturer workshop.
3.chair gas lift also called chair gas cylinders, which are available from 1.5 inches to 13inch stroke length(rename drive length) with swiveling & non-rotating, customizing. Applications of chair gas lift (chair gas cylinders) include office chair and ergonomic chair, task chair and executive chair, desk chairs and computer chairs, gaming chairs and bar stools, etc. The below picture is the chair components suppliers workshop.
4.Chair mechanism is located underneath the seat of a chair to support the point of the chair, linking the chair gas lift where it is used to connect the chair into a whole. Including swivel chair mechanism, butterfly tilt mechanisms, gaming chair tilt mechanism, And the chair mechanisms center hole are a match with all kinds of standard tapered chair gas lift (chair gas cylinders). The below picture is the chair components suppliers workshop.
5.Chair armrest always come in pairs, to provide a place for you to rest your forearms and relieve strain on your shoulders and wrists. They are divided into metal iron, steel aluminum alloys, and Plastic office chair armrest by material. Also divided 2d armrest,3d armrest, 4d armrest, ergonomic armrest, office chair hand rest by function. Our quality certification about SGS bifma x5.1 en 1335 for office chair wheels, chair bases, chair gas lift (chair gas cylinders), and chair mechanism.tuv certificate is for class 4 chair gas lift (chair gas cylinders)
50% choose our business due to our customer service.
The product's chair parts come in at second at 43%,
and the price was dead last at .06%.
Custom guidance by Office chair parts manufacturer
Chair components suppliers Custom Capability
We have a professional design team, Support Customized for office chair components appearance, swivel chair parts packing and chair spare parts Logo printing and so on; Offer the competitive price with stable good quality. Established long-term and friendly cooperation relations with customers which from Italy,Vietnam,Mexico,USA,Brazil,Russia,Switzerland. We can design office chair wheels, chair bases and chair gas lift (chair gas cylinders), Chair mechanism, Chair armrest according to customer requirements. After the client puts forward the design requirements, Our customization team will evaluate the feasibility of the plan and the design cycle according to the design requirements. And will provide some suggestions to improve customer’s design with our professional knowledge and valuable experience, then collect feedback from customers. In the end, we will proceed with some samples until customer approval.
office chair wheels customization
office chair wheels customization is based on the customer’s requirements (caster material, castor colors, wheel dimension, castor height, hardware length, and other functions), designed to meet the requirements for customers' furniture. then make a detailed list quotation for office chair wheels and mold cost for injection work. Once you approve the cost, we will produce some samples until you satisfy, In the end, we will produce the mass production after sample confirmation.
Chair base customization
The customization for chair base is based on the customer’s appearance(5star chair base,4 legs base,3 leg base), surface treatment(Raw polished bases, finish polished bases, powder coat painted bases) , Colors (black,red, gray,blue, green, yellow etc.), Radius range from 200mm to 350mm. Base on your finish-chair and your special requirements,we will offer professional suggestions to improve mold more available.Once you approve the cost for injection mold and chair base unit price, we will produce some samples until you are satisfied.
Chair gas lift (chair gas cylinders) customization
The customization for chair gas lift (chair gas cylinders) are based on the customer’s function(swivel chair gas lift, swivel without lifting gas lift, lifting NON-ROTATING chair gas lift, auto reduction swivel gas lift), dimension (stroke drive length, outer tube length, outer tube diameter, total open length). Base on your finish-chair and your special requirements, we will offer professional suggestions to improve mold more available. Once you approve the cost for mold and chair gas lift (chair gas cylinders) unit price, we will produce some samples until you are satisfied.
