Replacing a cracked 5-star base or a faulty gas cylinder doesn’t require a professional. The office chair base and gas lift are connected by a simple friction fit (a Morse taper). Because of the constant downward pressure from sitting, they become tightly wedged together over time.
This guide will show you exactly how to separate them safely without damaging your chair or your floor.
Tools You Will Need
Before you start, gather these essential tools:
- Rubber mallet: Crucial for applying heavy force without shattering nylon bases or denting aluminum ones.
- WD-40 (or penetrating oil): To loosen stubborn or rusted metal-to-metal connections.
- Pipe wrench (optional): Only needed if you also plan to detach the gas cylinder from the top seat mechanism.
- Old towel or blanket: To protect your floor and the chair components from scratches.
Step-by-Step Guide: How to Remove the Office Chair Base

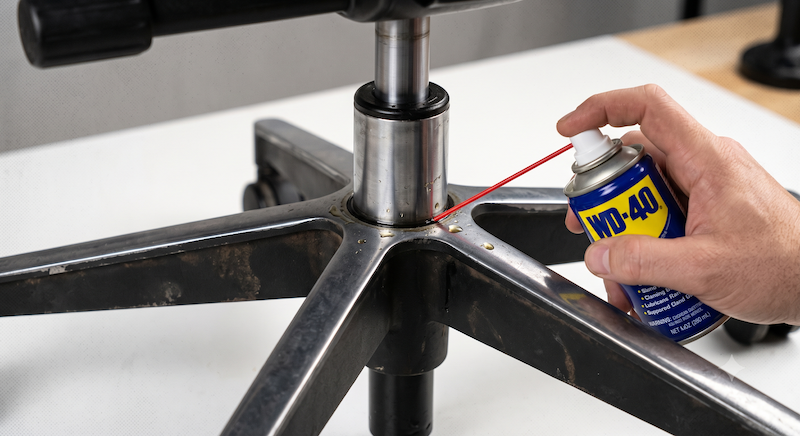

Step 1: Prep the Chair and Apply Lubricant
Turn your office chair on its side. Locate the joint where the silver gas cylinder meets the center hole of the 5-star base. Spray WD-40 directly into this crevice. Let the oil sit and penetrate for 5 to 10 minutes to break down the friction fit.

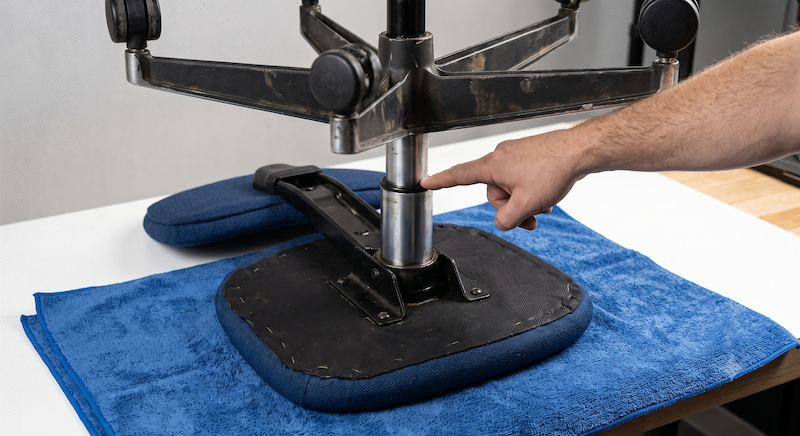

Step 2: Position the Chair
Flip the chair completely upside down. Rest the seat cushion flat on your workbench or a protected floor so the 5-star base is pointing straight up. Ensure the chair is completely stable before you begin striking.
Step 3: Strike the Base
Take your rubber mallet. Aim for the thickest metal or plastic area of the base, right next to the center hole where the gas cylinder goes in. Do not hit the outer legs or casters, as the leverage can easily snap them.

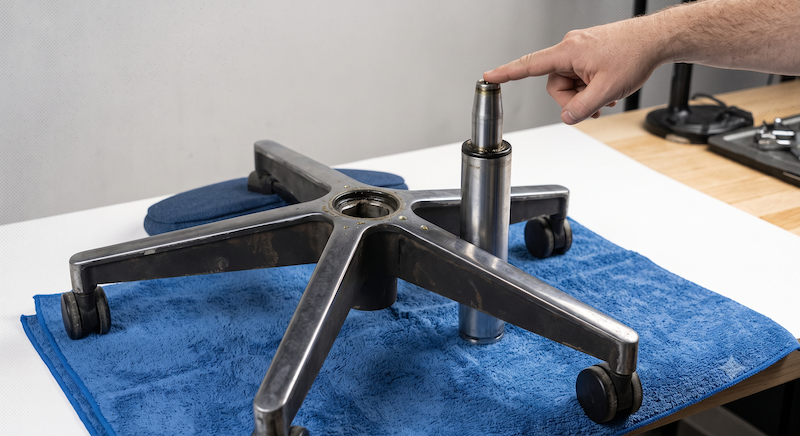

Strike the center area firmly downward. Rotate the base a few inches after every hit to distribute the force evenly. After several strong strikes, the base will loosen and slide right off the gas cylinder.
Common Mistakes to Avoid During Removal
- Using a standard metal hammer: A metal hammer will instantly shatter standard nylon bases and cause severe cosmetic damage to aluminum bases. Always stick to rubber.
- Damaging the retaining clip: Do not tamper with the small metal retaining clip at the very bottom of the gas cylinder. Breaking this can cause the cylinder to leak pressure or come apart.
When Is It Time to Replace Your Office Chair Base?
If your current base is cracking, making loud popping noises when you shift your weight, or struggling to maintain balance, it must be replaced immediately to prevent injury.

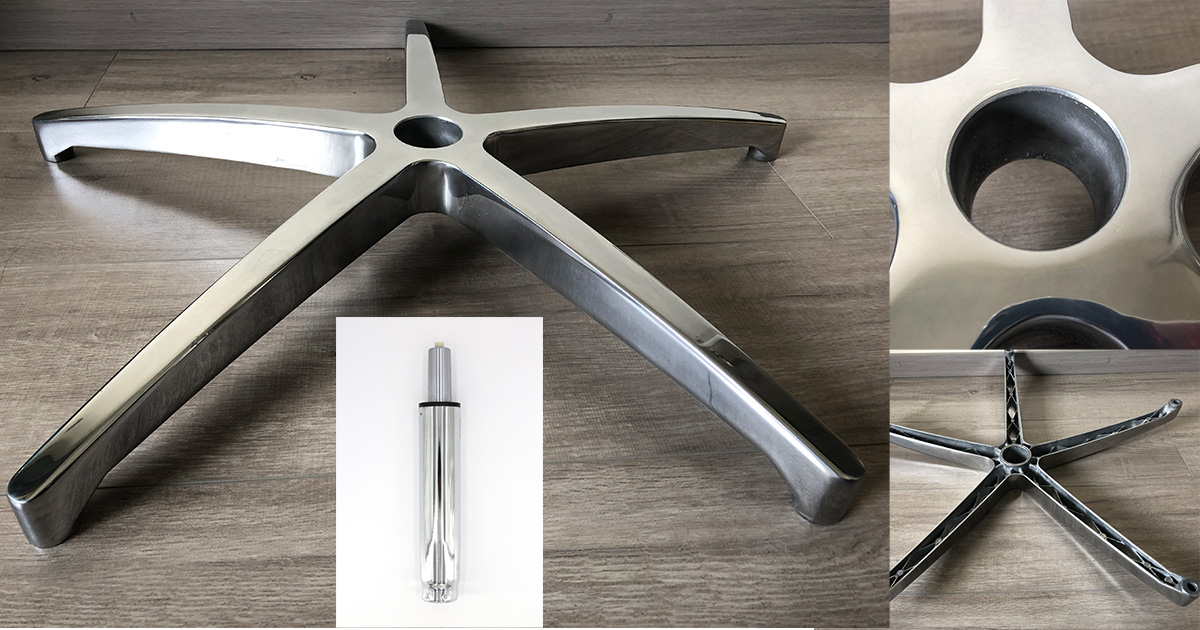

When replacing, avoid cheap, recycled plastic components. Upgrading to a heavy-duty Alu chair base (aluminum) ensures maximum structural integrity. Look for bases manufactured with 100% virgin materials and tested to strict BIFMA and SGS standards.
If you are replacing the base, it is also the perfect time to install a fresh Class 3 or Class 4 gas lift and upgrade to smooth-rolling 50mm castor wheels for better mobility.
Summary
Removing an office chair base requires just a little patience, some penetrating oil, and the right leverage. Once the old base is out of the way, you can easily swap in high-quality replacement components to restore your chair and extend its lifespan for years to come.
